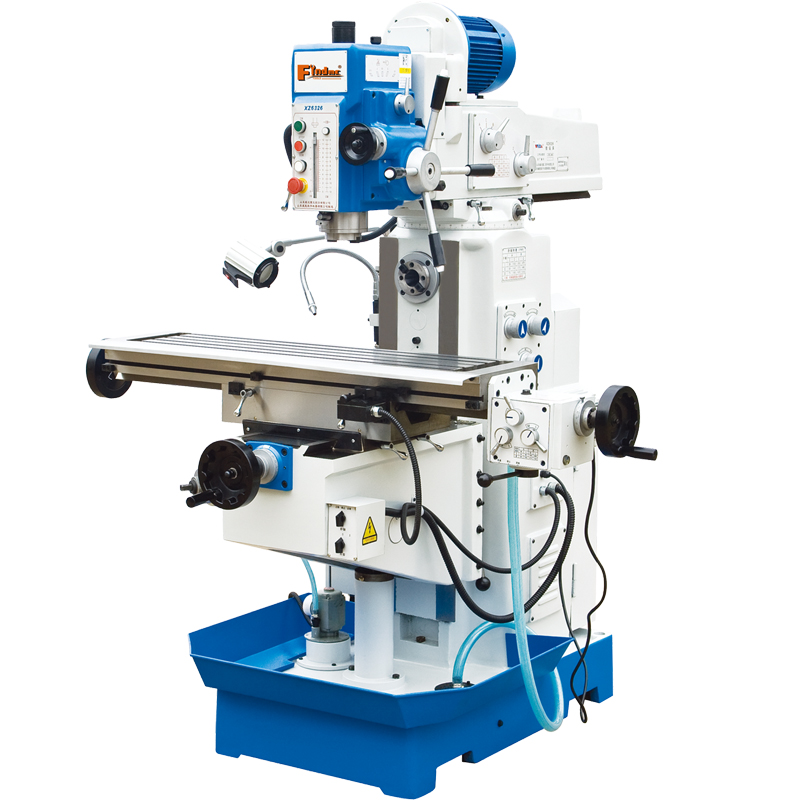

Milling drilling machine XZ6326
| Specification | XZ6326 |
| Table size | 1120×260mm |
| Table travel | 600×300mm |
| Spindle taper | ISO40(V/H) |
| Distance from spindle nose and table surface | 115-430mm |
| Spindle travel | 120mm |
| Max.drilling dia. | 30mm |
| Automatic drilling dia. | 14mm(cast iron) |
| Max.end milling width. | 125mm |
| Max.vertical drilling dia. | 25mm |
| Max.Tapping dia. | M16 |
| Spindle speed range | 67-2010rpm(V), 40-1300rpm(H) |
| Spindle motor power | 1.5/2.2kw, 2.2kw |
| Overall dimension | 1580×1450×2150mm |
| Machine weight | 1350kg |
