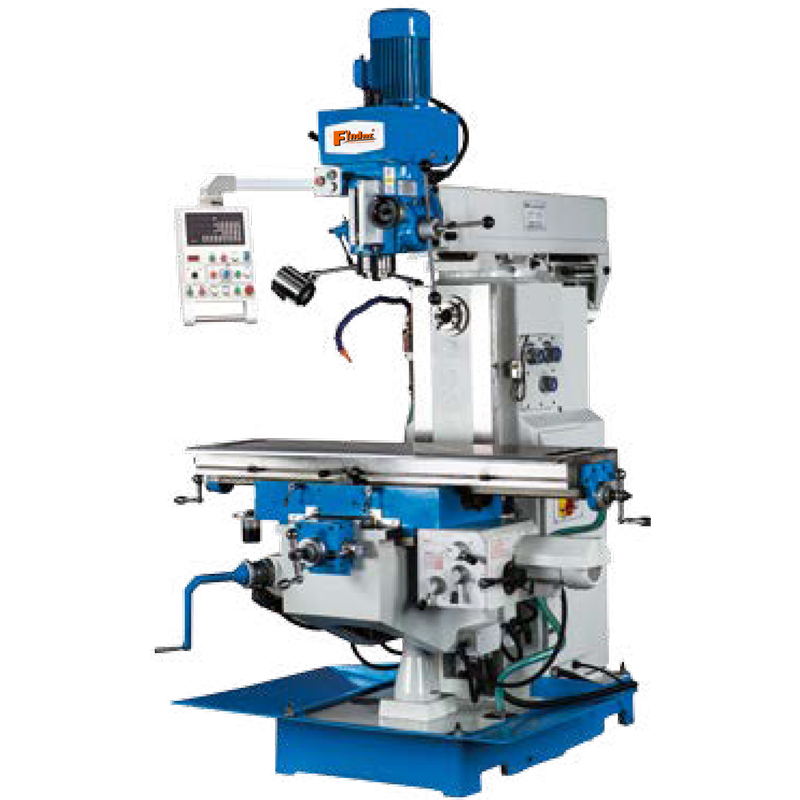

Milling drilling machine X6332Z
| Specification | X6332Z |
| Table size | 1320×320mm |
| Table travel | 800×300mm |
| Spindle taper | ISO40(V/H) |
| Distance from spindle nose and table surface | 150-550mm |
| Spindle travel | 120mm |
| Max.drilling dia. | 50mm |
| Automatic drilling dia. | 14mm(cast iron) |
| Max.end milling width. | 125mm |
| Max.vertical drilling dia. | 25mm |
| Max.Tapping dia. | M16 |
| Spindle speed range | 90-2000rpm(V), 38-1310rpm(H) |
| Spindle motor power | 2.2kw |
| Overall dimension | 1710×1720×2330mm |
| Machine weight | 2000kg |
