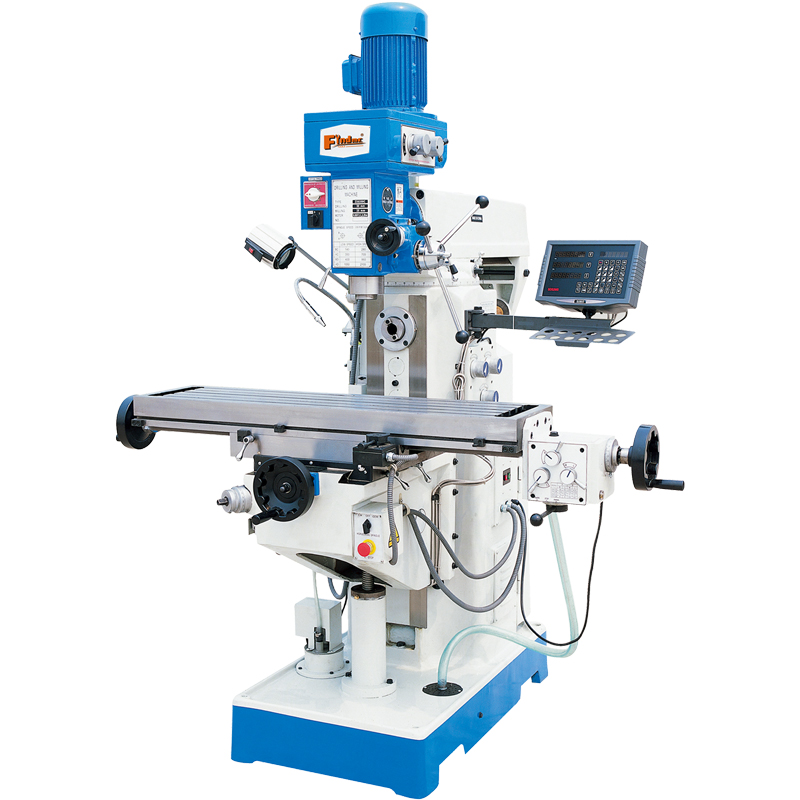

Milling drilling machine XZ6350C
| Specification | XZ6350C |
| Table size | 1120×260mm |
| Table travel | 600×230mm |
| Distance from spindle nose and table surface | 100-400mm |
| Spindle travel | 120mm |
| Max.drilling dia. | 30mm |
| Max.end milling width. | 100mm |
| Max.vertical drilling dia. | 25mm |
| Spindle speed range | 115-1750rpm(V), 40-1300rpm(H) |
| Spindle motor power | 0.85/1.5kw(V), 2.2kw(H) |
| Overall dimension | 1580×1330×2150mm |
| Machine weight | 1350kg |
