Milling machine/Milling drilling machine

  • XZ50C
XZ50C

XZ50C

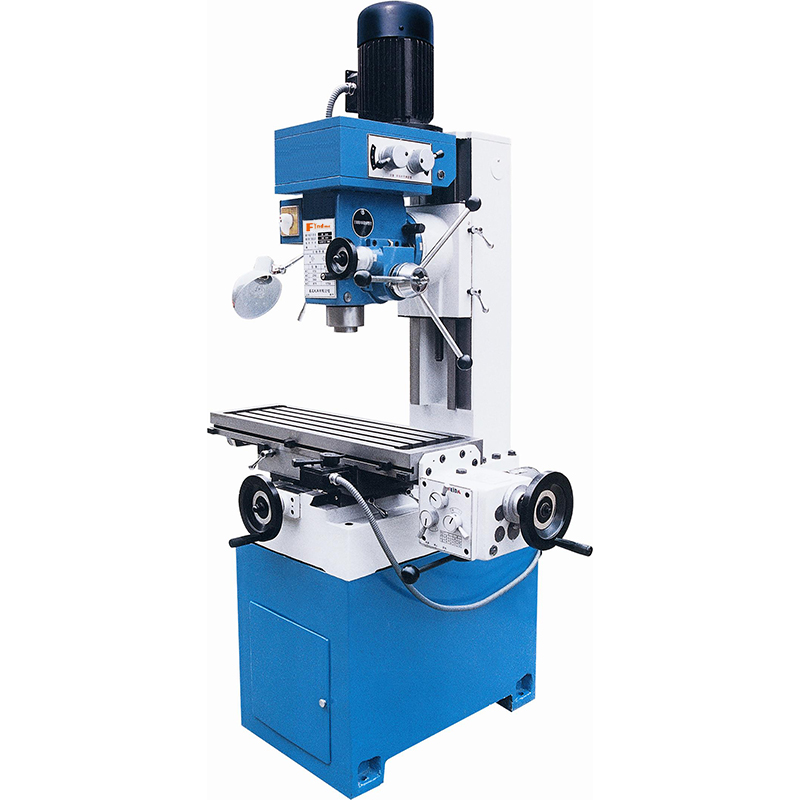

                      XZ50C MILLING DRILLING MACHINE


SpecificationXZ50C
Table size800×240mm
Table travel400×230mm
Distance from spindle nose to table surface50-410mm
Spindle travel120mm
Max.drilling dia.30mm
Max. vertical milling dia.25mm
Max.end milling width.100mm
Spindle taper  ISO30
Max.Tapping dia.M16
Spindle speed range115-1750rpm
Spindle motor power0.85/1.5kw
Overall dimension1270×950×1800mm
Weight500kg
