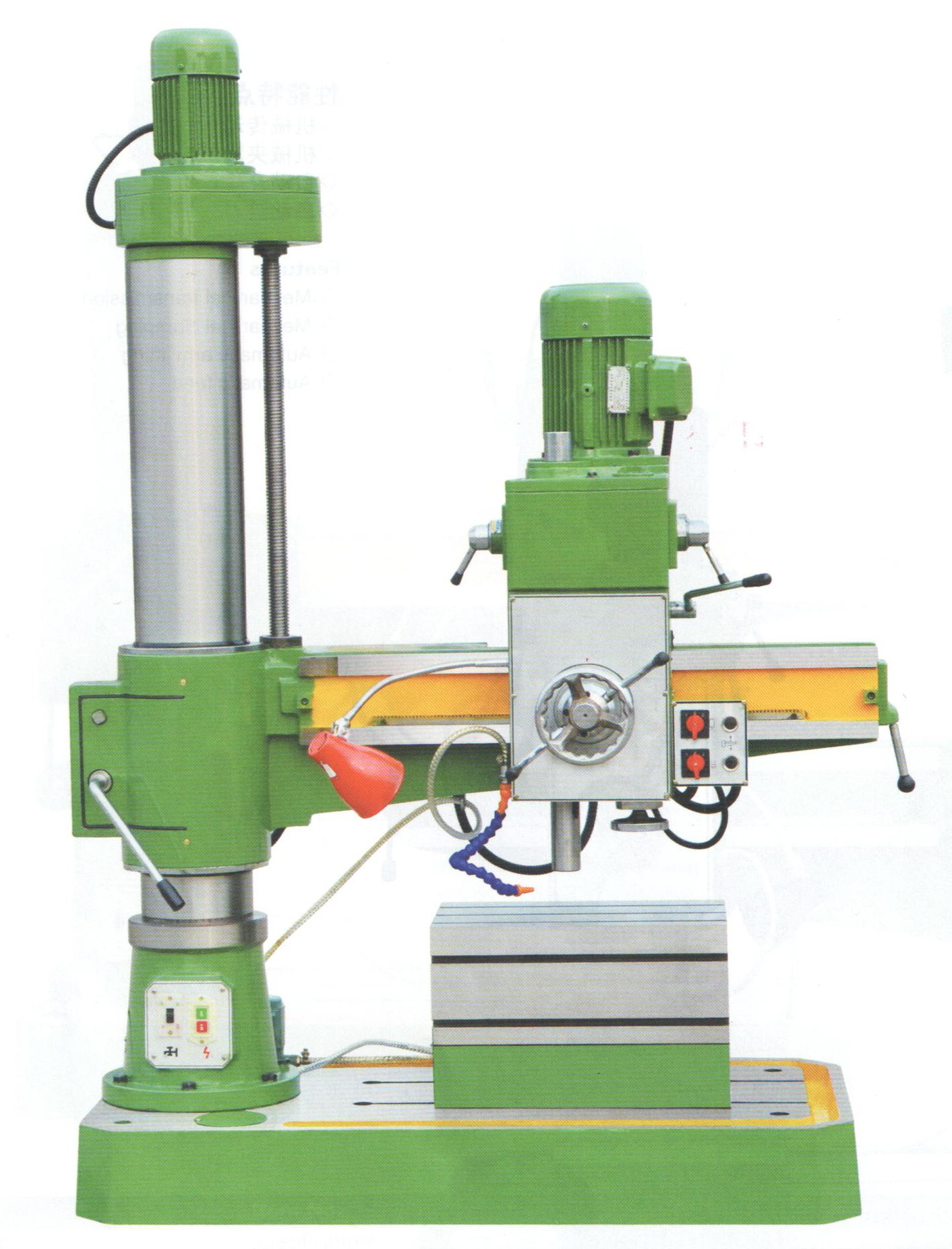

Radial drilling machine Z3032*10
Specifications
| Specification | Z3032×10 |
| Max.drilling diameter | 32mm |
| Distance from spindle axis to column | 260-880mm |
| Distance from spindle nose to working surface of base | 220-980mm |
| Horizontal travel of spindle head on arm | 600mm |
| Swivel angle of arm | ±180° |
| Column diameter | 200mm |
| Spindle taper | MT4 |
| Range of spindle speeds | 108～1000rpm |
| Number of spindle speeds | 6 |
| Range of spindle feeds | 0.1～0.25mm/r |
| Number of spindle feeds | 3 |
| Spindle travel | 120mm |
| Power of the main motor | 1.5/2.2kw |
| Lifting motor power | 0.55kw |
| Overall dimension | 1250×650×2020mm |
| Machine weight | 800kg |
