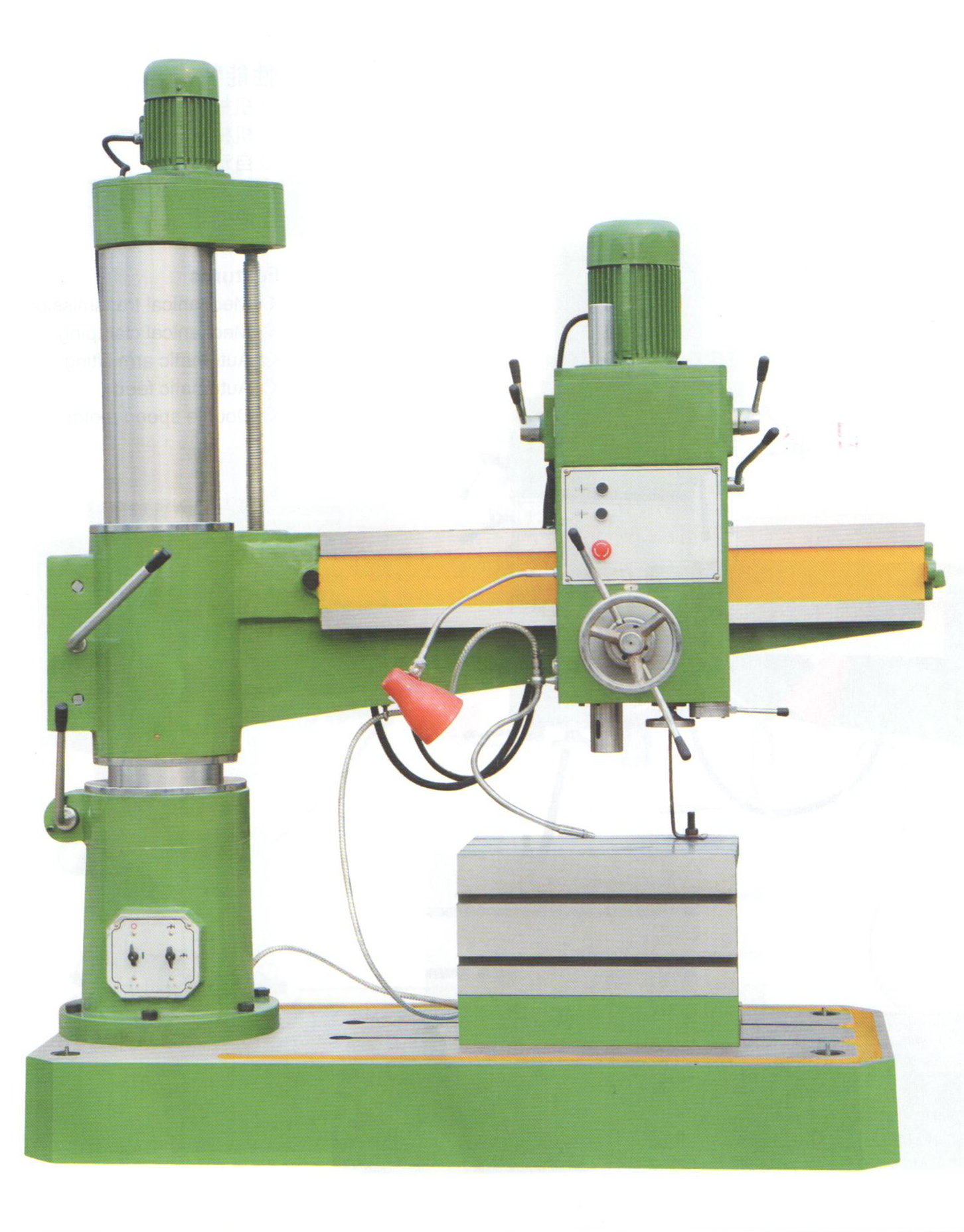

Radial drilling machine Z3040*13
Specifications
| Specification | Z3040×13 |
| Max.drilling diameter | 40mm |
| Distance from spindle axis to column | 360-1100mm |
| Distance from spindle nose to working surface of base | 260-1050mm |
| Horizontal travel of spindle head on arm | 880mm |
| Swivel angle of arm | ±180° |
| Column diameter | 230mm |
| Spindle taper | MT4 |
| Range of spindle speeds | 75～1200rpm |
| Number of spindle speeds | 6 |
| Range of spindle feeds | 0.1～0.25mm/r |
| Number of spindle feeds | 3 |
| Spindle travel | 200mm |
| Power of the main motor | 2.2kw |
| Lifting motor power | 0.75kw |
| Overall dimension | 1700×750×2250mm |
| Machine weight | 1300kg |
