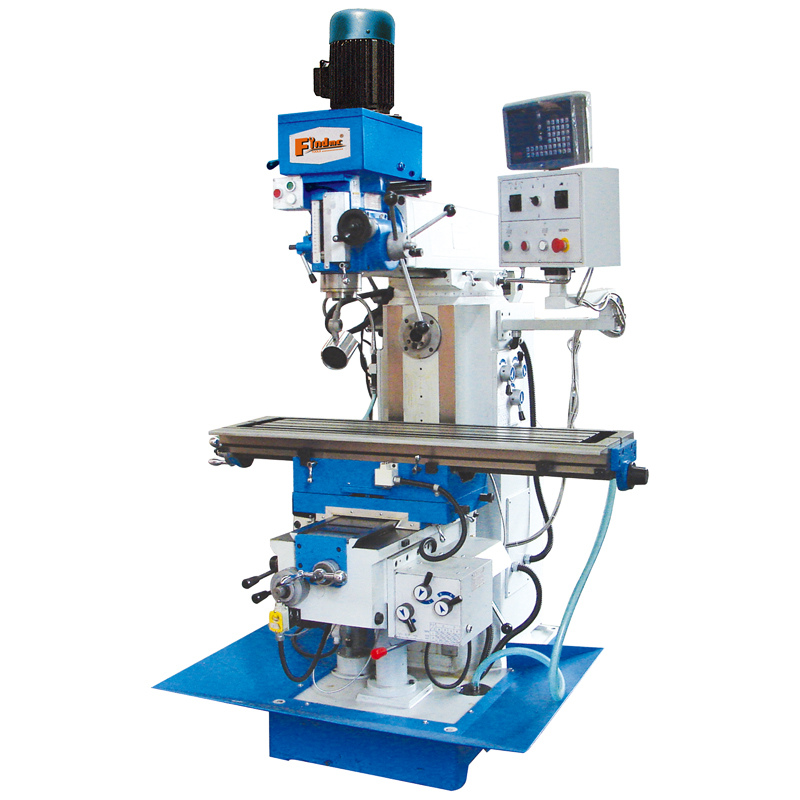

Milling drilling machine XZ6350ZS
| Specifications | XZ6350ZS |
Table size | 1370*320mm |
| Table travel | 800*320*400mm |
| Distance from spindle nose to table surface | 100-530mm |
| Spindle travel | 120mm |
| Max. drilling dia. | 30mm |
| X, Y-axis rapid feed speed | 1180mm/min |
| Max. end milling width | 125mm |
| Spindle taper | ISO40(V), ISO40(H) |
| Max. tapping dia. | M16 |
| Spindle speed range | 90-2000rpm(V), 40-1300rpm(H) |
| Spindle motor power | 2.2kw, (V), 3kw(H) |
| Overall dimension | 1750*1650*2250mm |
| Weight | 1700kg |
