Specification

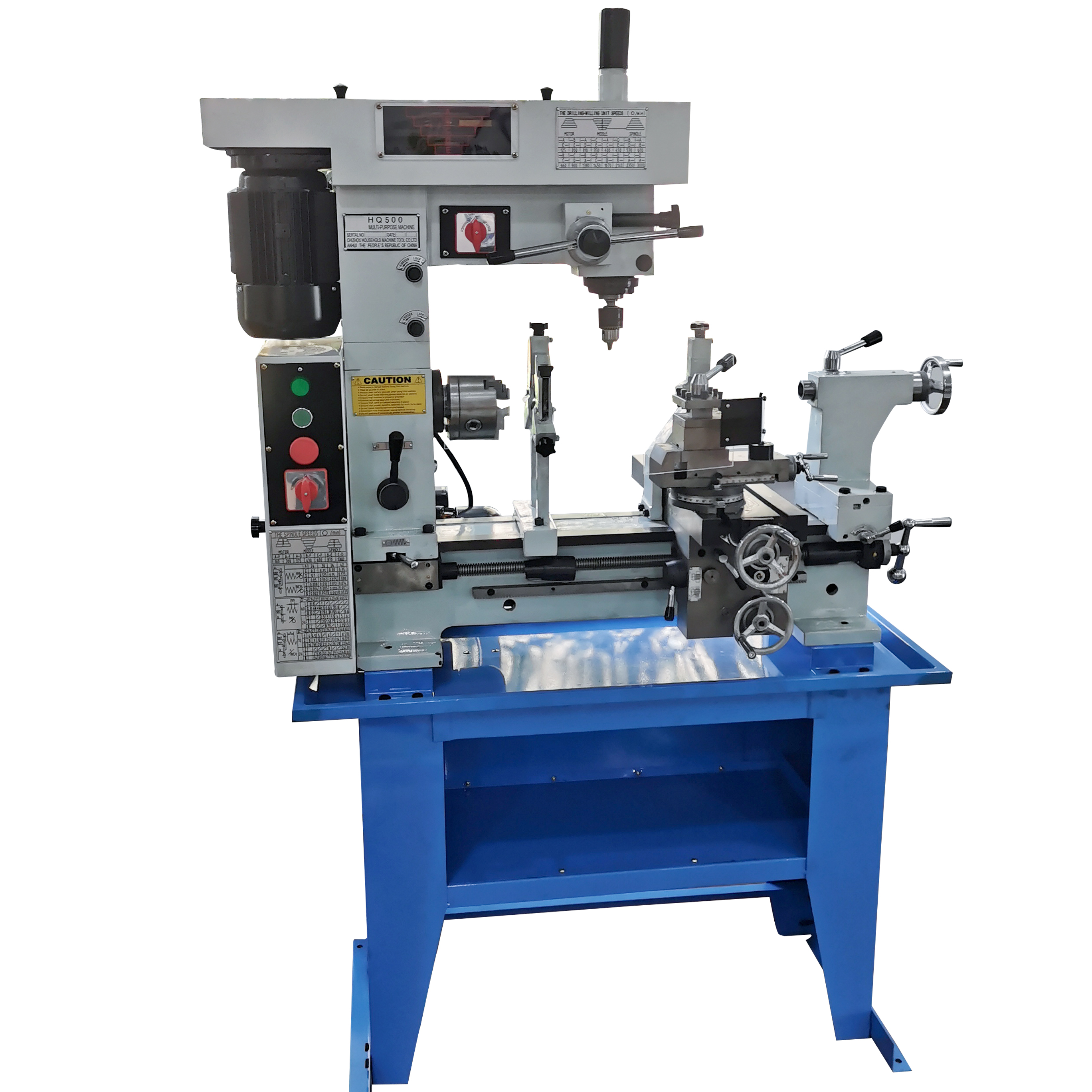

| Model | HQ500 |
| Swing over bed | φ420mm |
| Distance between centers | 500mm |
| Max. longitudinal travel | 400mm |
| Max. cross travel | 195mm |
| Taper of spindle | M.T.4 |
| Spindle hole | φ28mm |
| Step of spindle speed | 7 |
| Range of spindle speed | 160~1360r.p.m |
| Barrel travel | 70mm |
| Barrel taper | M.T.3 |
| Metric thread range | 0.2~6mm |
| Inch thread range | 4~120T.P.I |
| Longitudinal range of automatic feeding | 0.05~0.35mm 0.002~0.014” |
| Cross range of automatic feeding | 0.05~0.35mm 0.002~0.014” |
| Max. drilling capacity | φ22mm |
| Worktable size(L×W) | 475x160mm |
| Max. end m | φ28mm |
| Max. face m | φ80mm |
| Distance between spindle center and column | 285mm |
| Distance between spindle and worktable | 306mm |
| Headstock travel of up and down | 110mm |
| Swivel degree of headstock | ±360° |
| Main motor power | 0.55kw |
| Packing size | 1130x580x1100mm（HQ800:1430x580x1100mm） |
| N.W/G.W | 245kgs/280kgs（HQ800:275kgs/325kgs） |
| Loading amount | 40pcs/20"container（HQ800:32pcs/20"container） |
