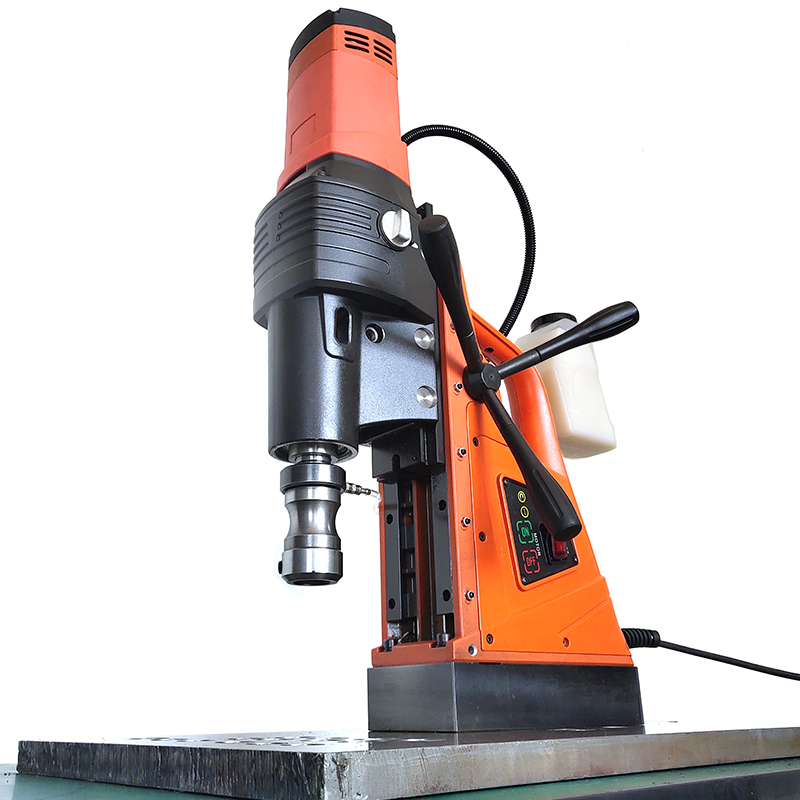

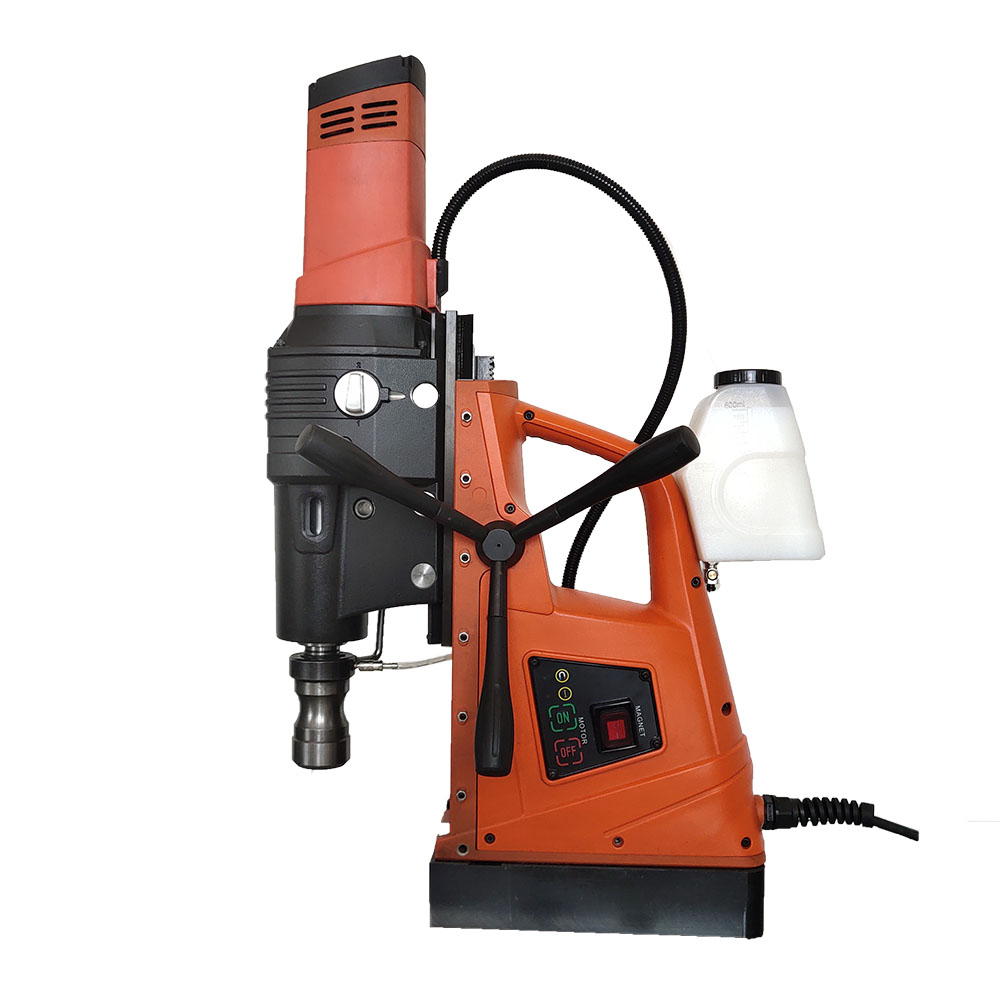

Magnetic drill machine DX-120
Specifications
| Motor rated power | 2500W |
| Load speed | 80/125/175/300rpm |
| Tool holder | MT4 |
| Magnetic adhesion | 20000N |
| The max. cutter capacity | 120mm(4-3/4") |
| The max. cutting depth | 100mm(4") |
| The max. diameter of twist drill | 42mm(1-11/16") |
| The min. cutter depth | 15mm |
| Stroke | 220mm |
| Motor can adjust the height to | 60mm |
| Magnetic drill machine dimension | 440*250*580mm |
| Magnetic base size | 280*115*56.5mm |
| Total weight | 36.5kg |
| Countersunk drilling | 10-80mm |
