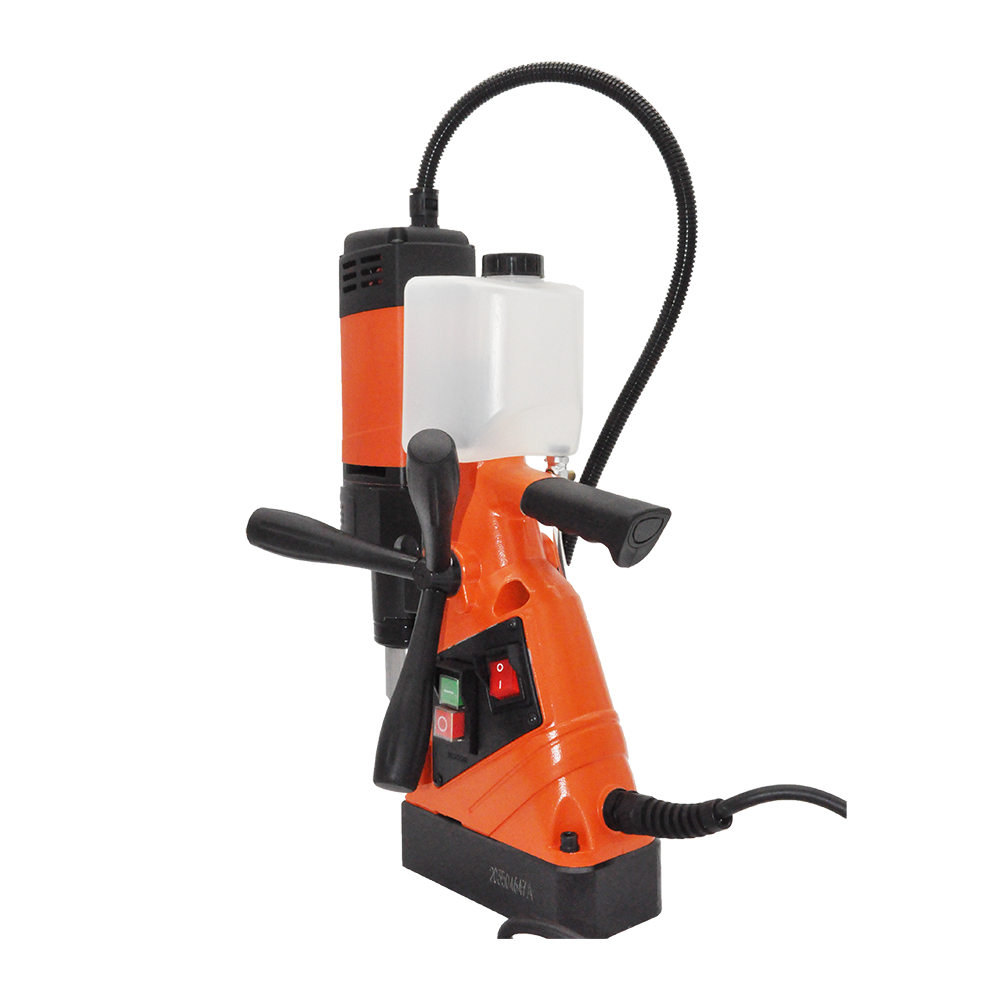

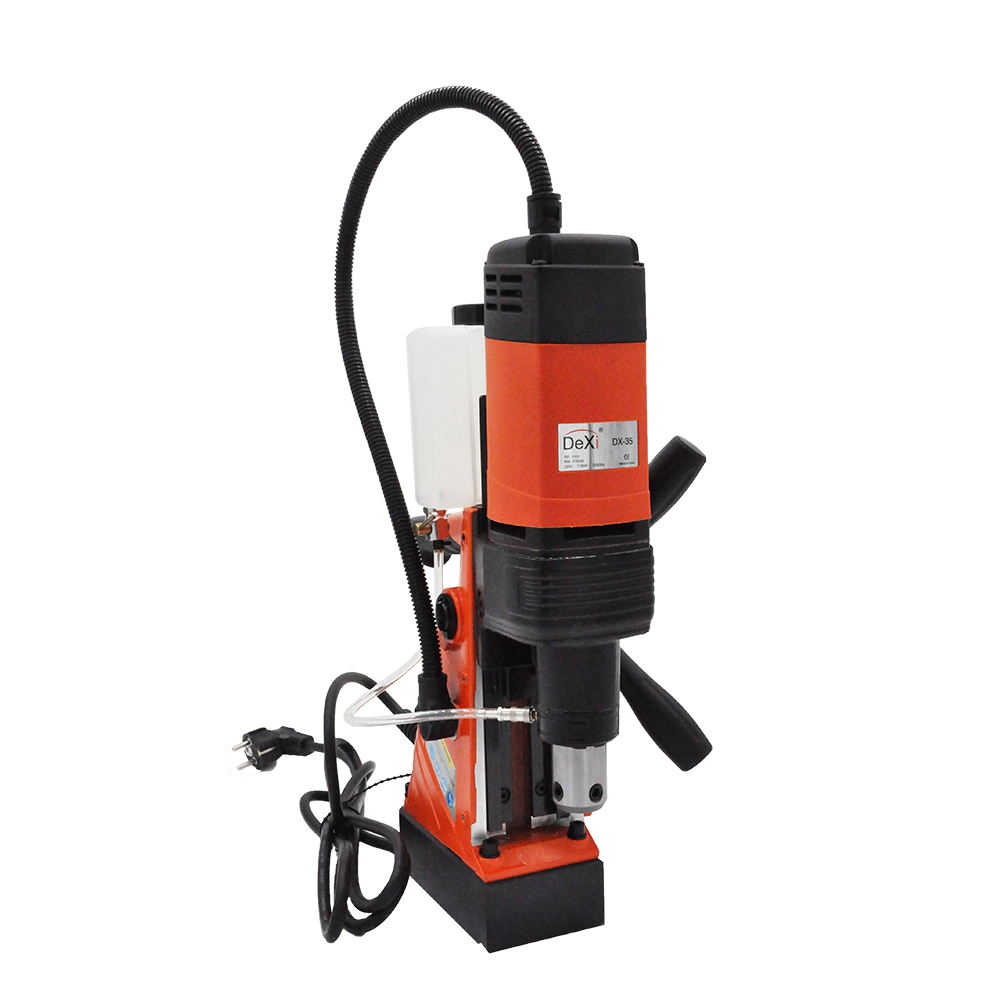

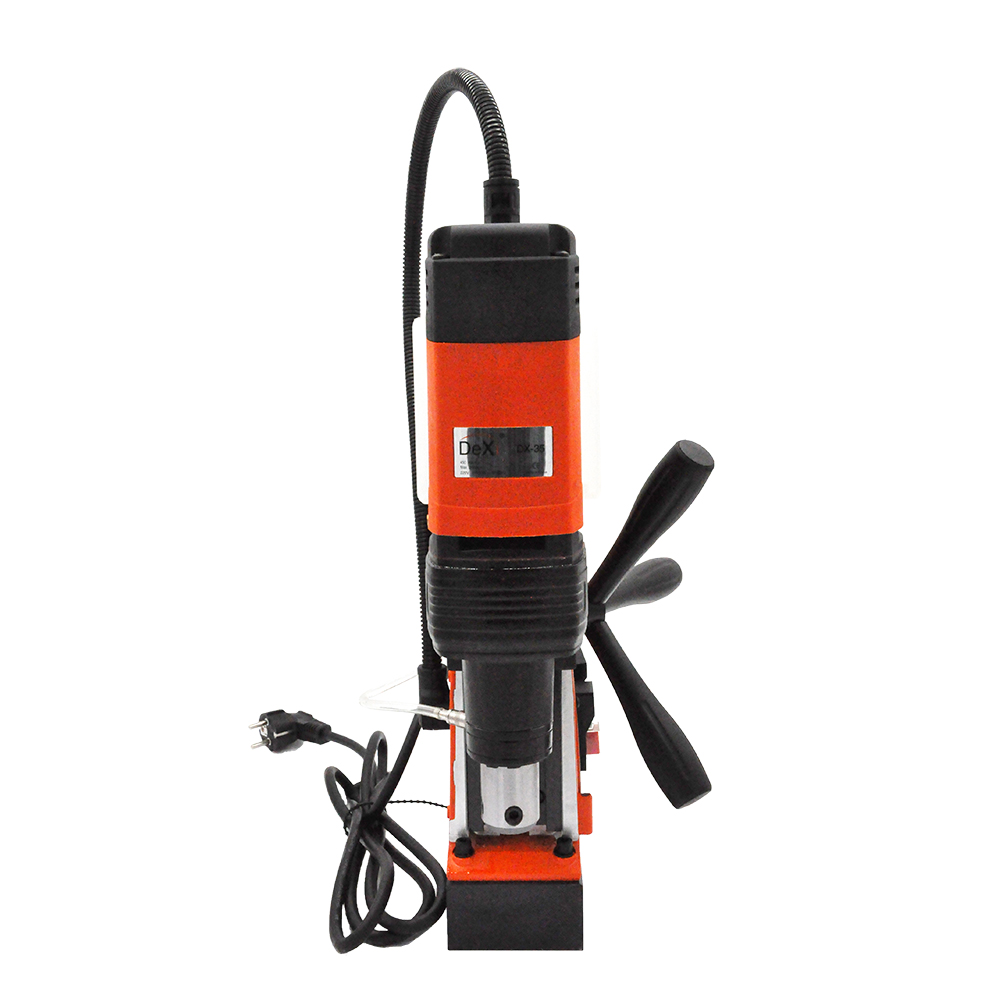

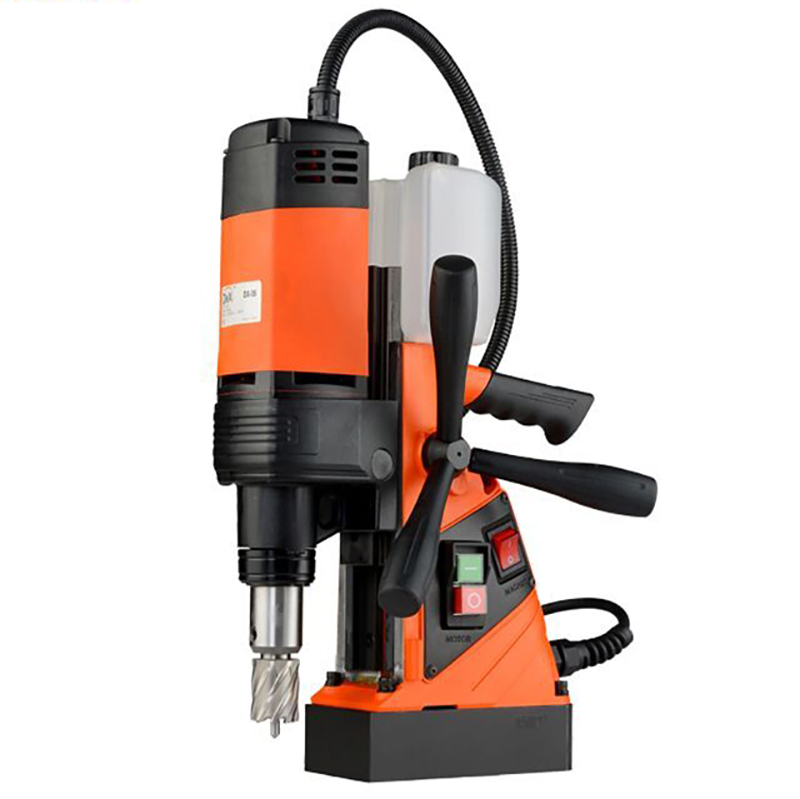

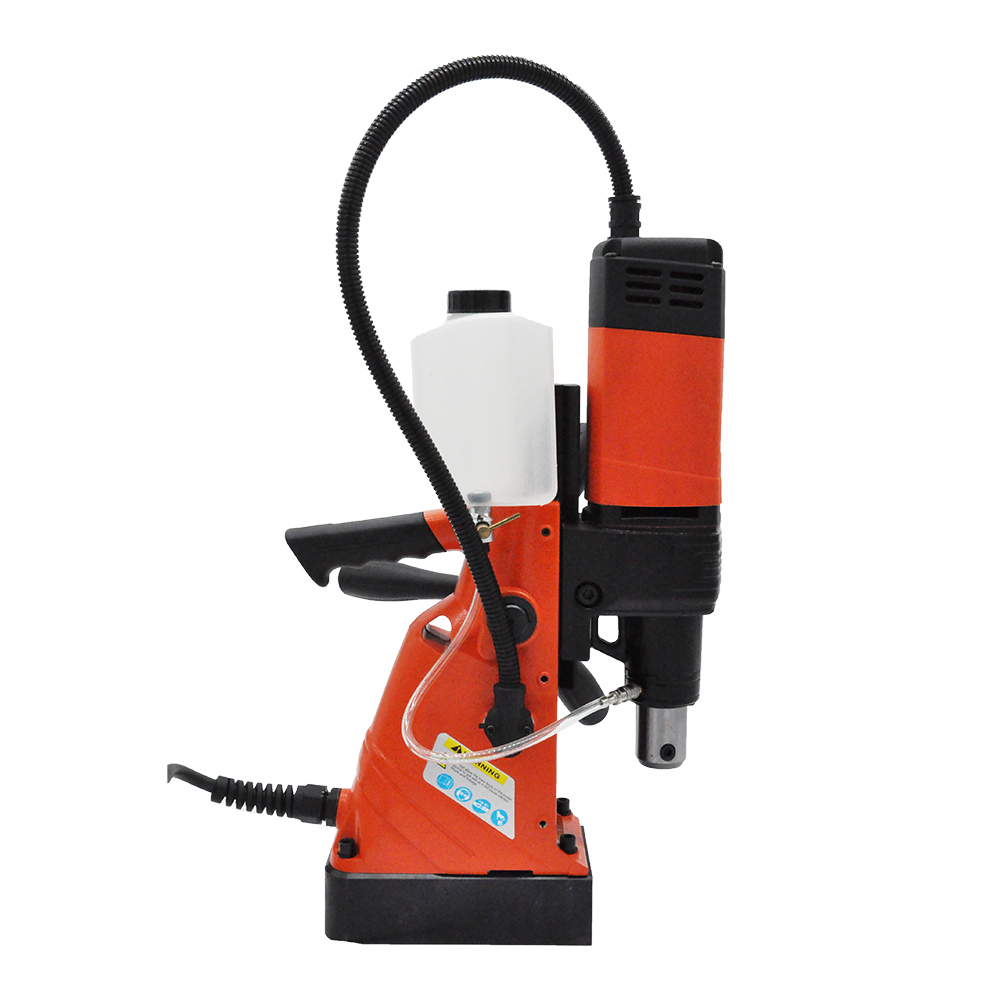

Magnetic drill machine DX-35
Specifications
| Modle | DX-35 |
| Stroke | 120mm |
| Magnetic base size | 167*84*44mm |
| Input power | 1100W |
| The max cutting depth | 50mm(2°) |
| The max capacity diameter | 35mm（1-3/8"） |
| Motor can adjust the height to | 95mm |
| The max diameter of twist drill | 13mm(1/2") |
| The min cutter depth | 10mm |
| Magnetic adhesion | 10000N |
| The type of shank | 19.05mm（3/4"） |
| Countersunk drilling | 10-35mm |
| Load speed | 450rpm |
| Package size | 55*22*45cm |
| N.W/G,W | 11/15kg |
